Tracking

Global settings

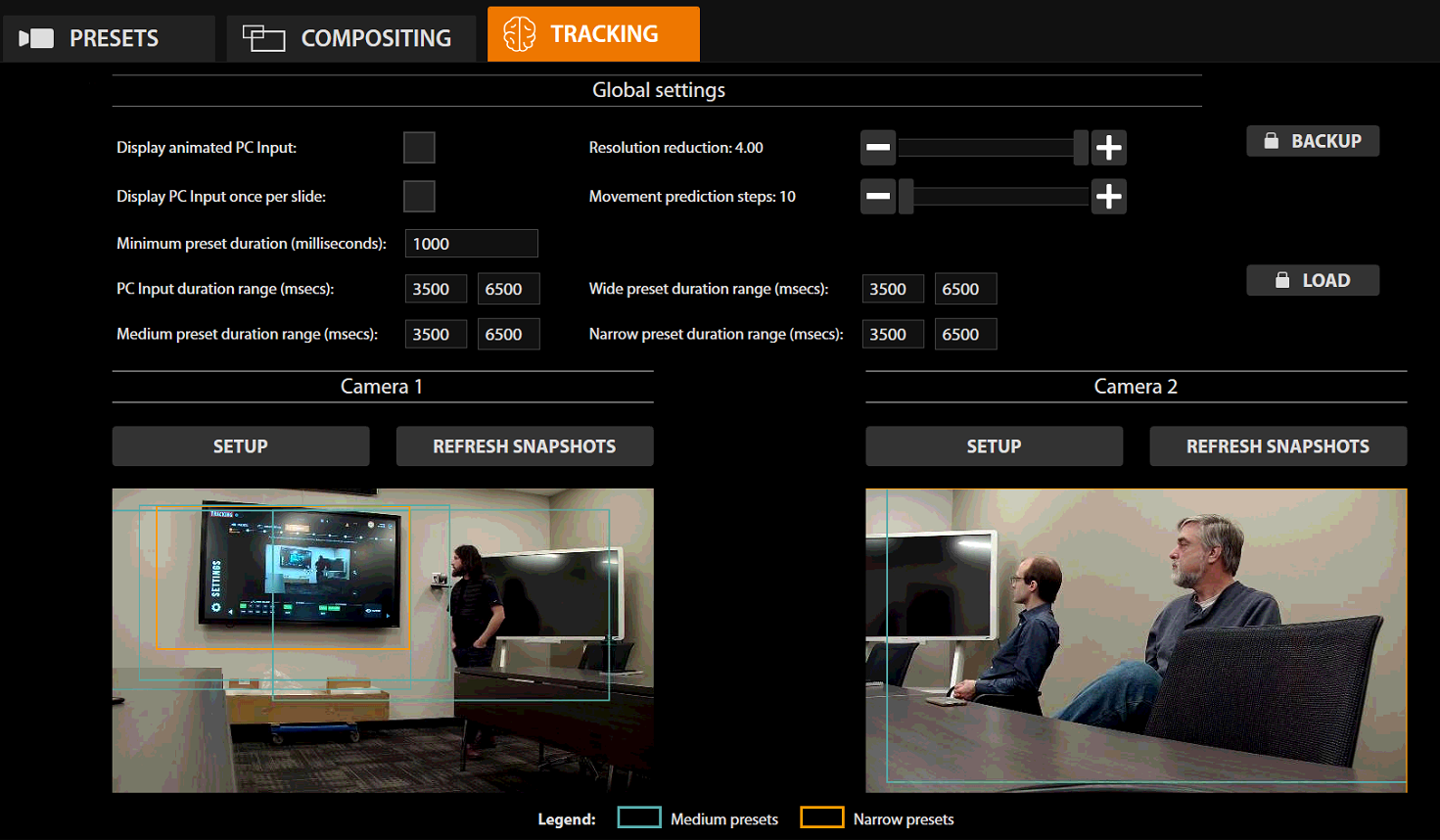

Inside this area you will able to adjust next settings:

• Display animated PC input - this option allows you using animation in your presentation and system will show it.
• Display PC input once per slide - slide will be shown just one time
• Minimum preset duration - set minimum time for showing preset (1000 ms by default)
• PC input duration range - time range from minimum to maximum for showing slide. For each times it will be chosen randomly.
• Medium / Wide / Narrow preset duration range - time range from minimum to maximum for showing camera preset. For each time it will be chosen randomly.
• Resolution reduction - divisor of the video resolution used when analysis the video feed. This number allows you to tweak the performance versus quality relation. Reducing this number means the image analysis will be slower but better, and setting this number higher will, inversely, improve performances, but reduce quality. (4.00 is default).
• Movement prediction steps - numbers of frames ahead for movement prediction.
• BACKUP/LOAD - allows you to make backup of the settings and upload if needed.

Cameras settings

Inside this region you will able to see the preview picture with all presets in blue and orange frames. To update preview picture, click on REFRESH SNAPSHOTS. To start configure presets click on SETUP.

Presets configuration

For correct workflow of the TRACKING solution, all the space where presenter will be moving should be covered by tracking presets. For each camera you have to configure:

• wide preset
• medium (middle) presets
• narrow (close) presets

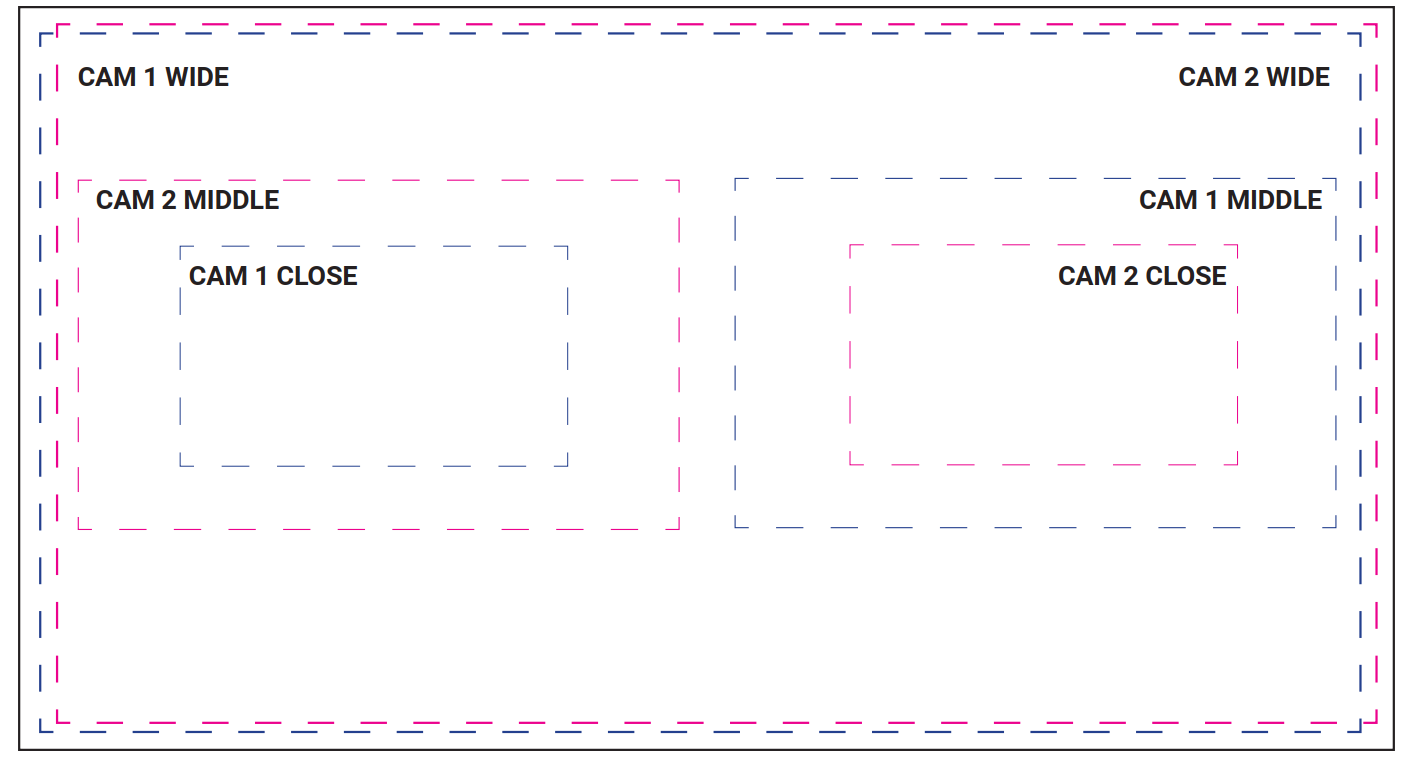

This schematic will give you an idea about presets positions:

You can configure several narrow and medium presets.

Camera 1 configuration

To start configuration click on button.

The system will lead you step by step through the configuration workflow.

For the best results ensure while configuration process that nothing will change, and everything will be the same as in real conditions.

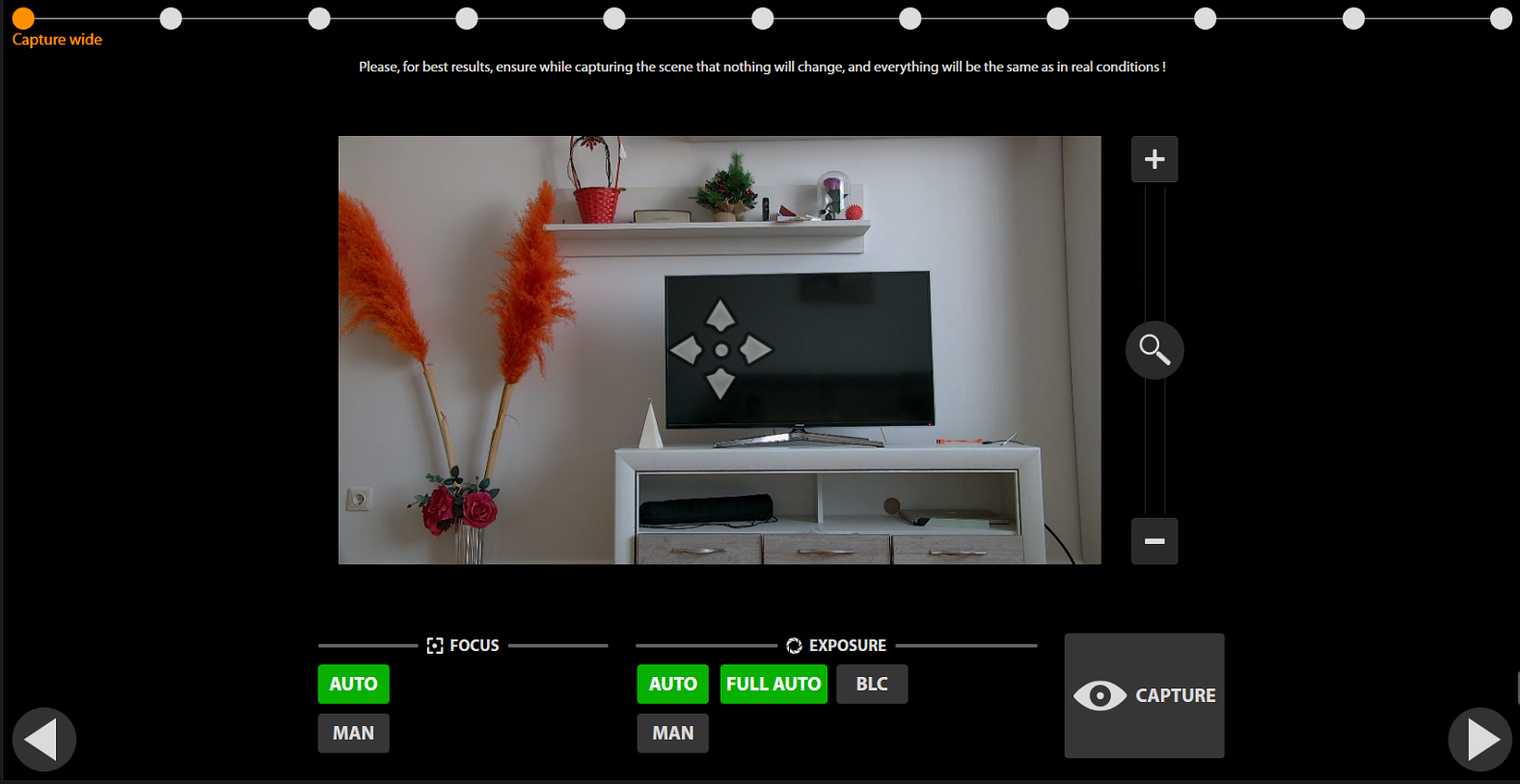

Capture Wide

In this step you will have to capture the wide preset for current camera.

You can adjust PTZ, focus, and exposure for the shot, and click the CAPTURE button.

After click on to go to the next step.

Use to back on previous step.

Wide: Region of interest

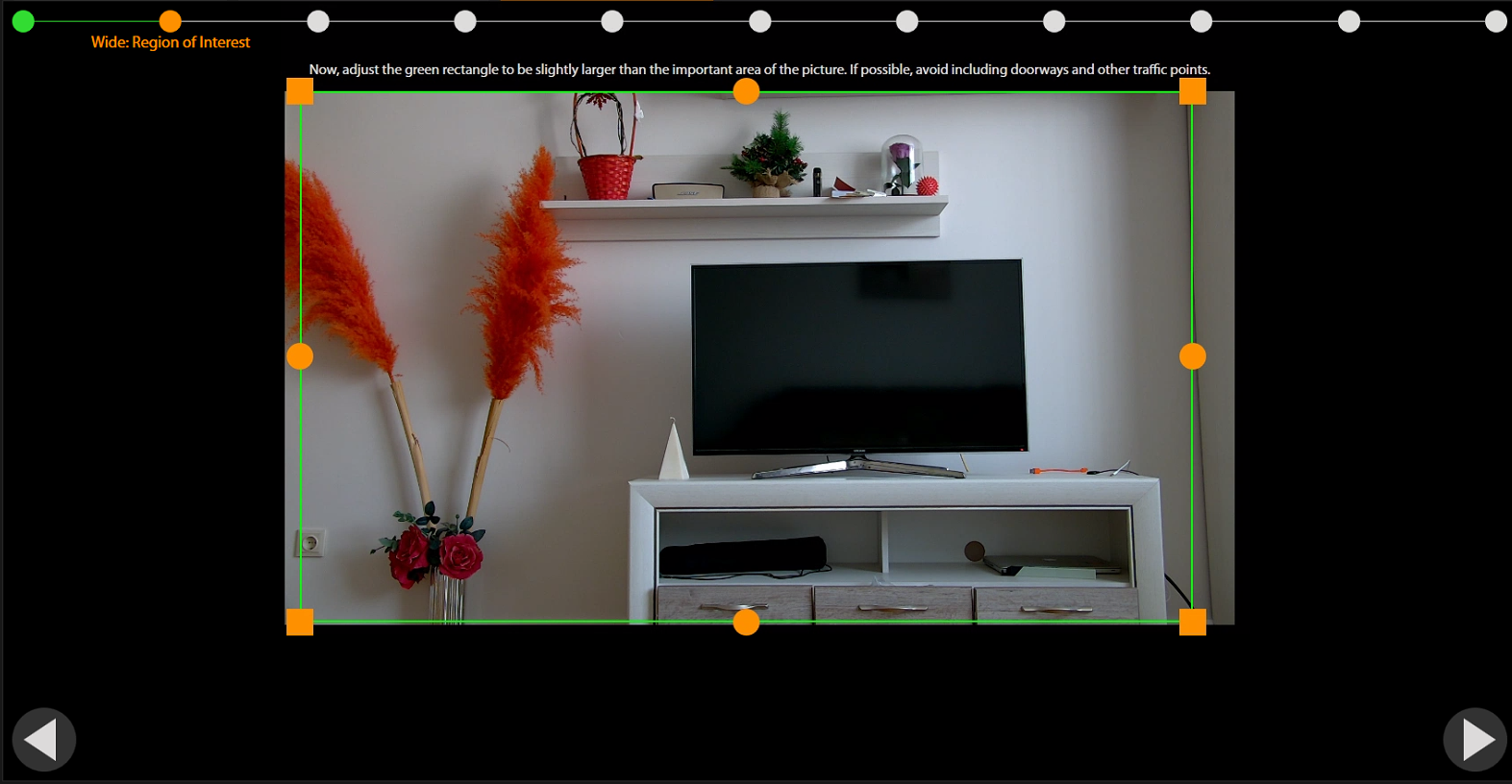

In this step you will need adjust green frame to be slightly larger than the important area of the picture. If possible, avoid including doorways and other traffic points.

When configuration is done, click on .

Wide: Settings

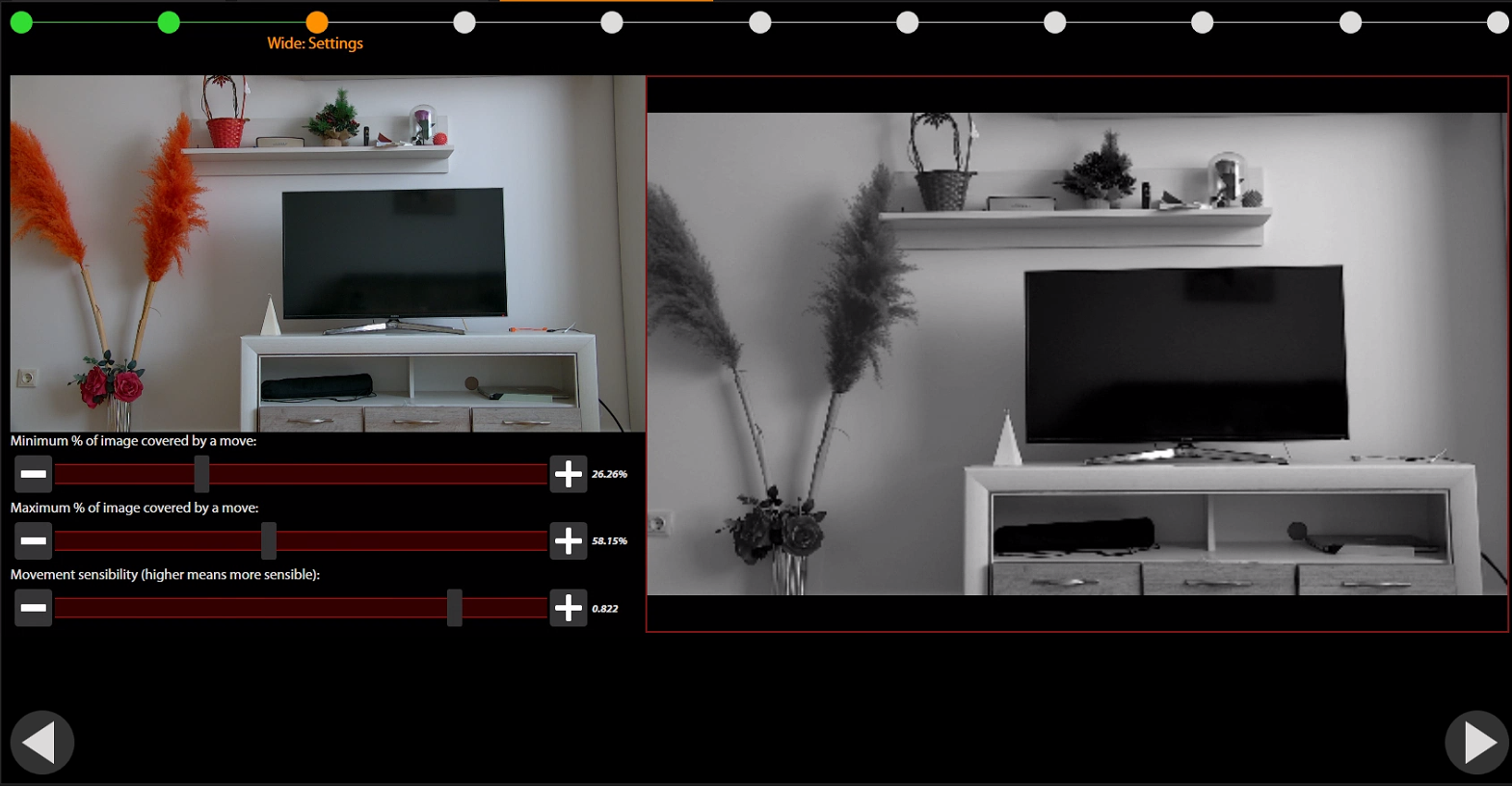

In this step you can adjust 3 parameters to get the best sharpness of the movement detection:

• Minimum % of image covered by a move - set minimum threshold of image covered by a move to allow detection.
• Maximum % of image covered by a move - set maximum threshold of image covered by a move to allow detection.
• Movement sensibility.

With the good settings you will see the frame around moving things / people.

When configuration is done, click on .

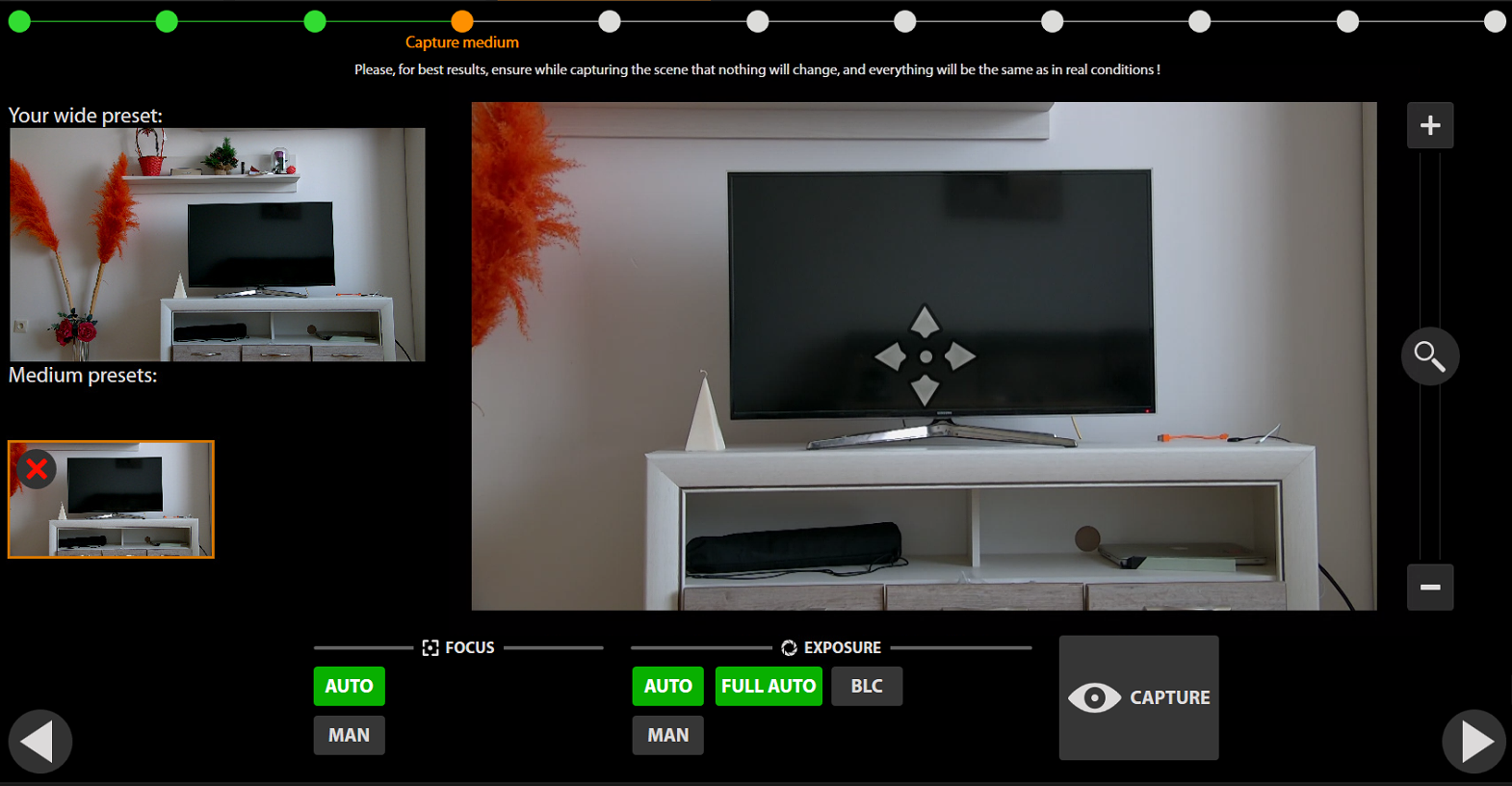

Capture Medium

In this step you will have to capture the medium presets for current camera. You can create several medium presets. All of them you will see in the left area of the interface.

You can adjust PTZ, focus, and exposure for the each shot, and click the CAPTURE button.

With each click on the CAPTURE button system will create new medium preset.

Next, click on to go to the next step.

Medium: Wide coverage

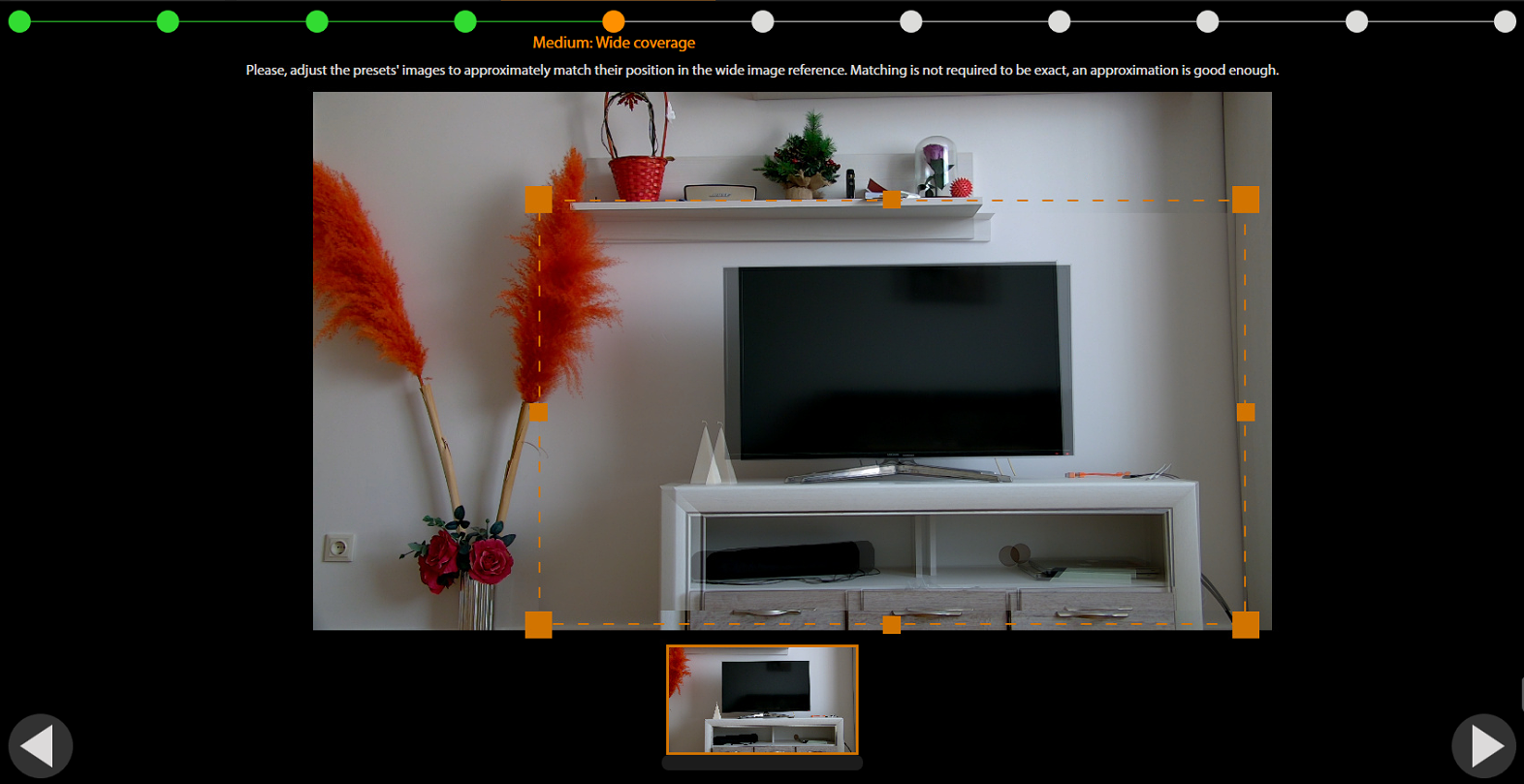

In this step you will have adjust the presets' images to approximately match their position in the wide image reference. Matching is not required to be exact - an approximation is good enough.

You will have to do this for all medium presets.

When configuration is done, click on .

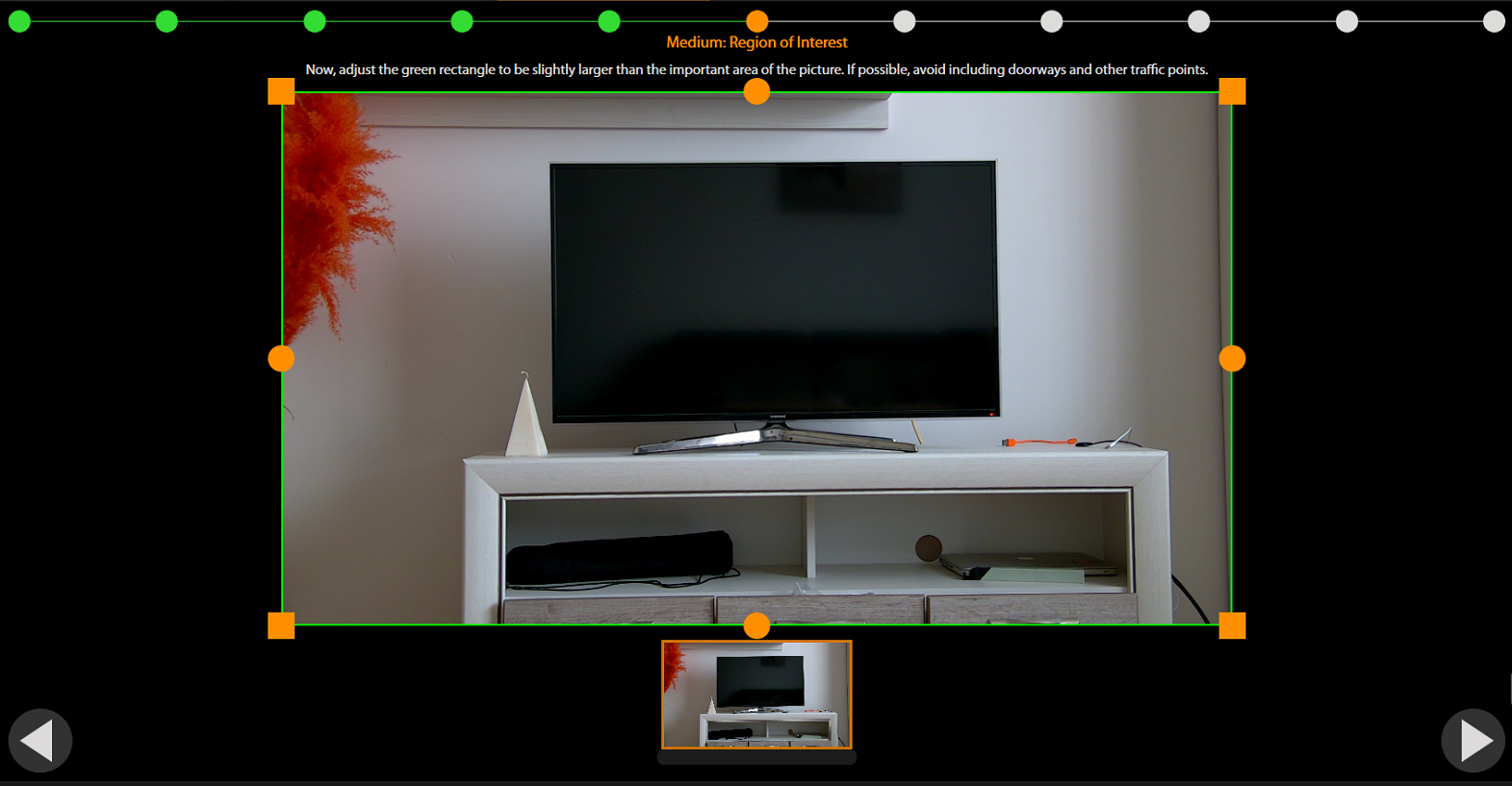

Medium: Region of interest

On this step you will need adjust green frame to be slightly larger than the important area of the picture. If possible, avoid including doorways and other traffic points.

When configuration will be done click on .

Medium: Settings

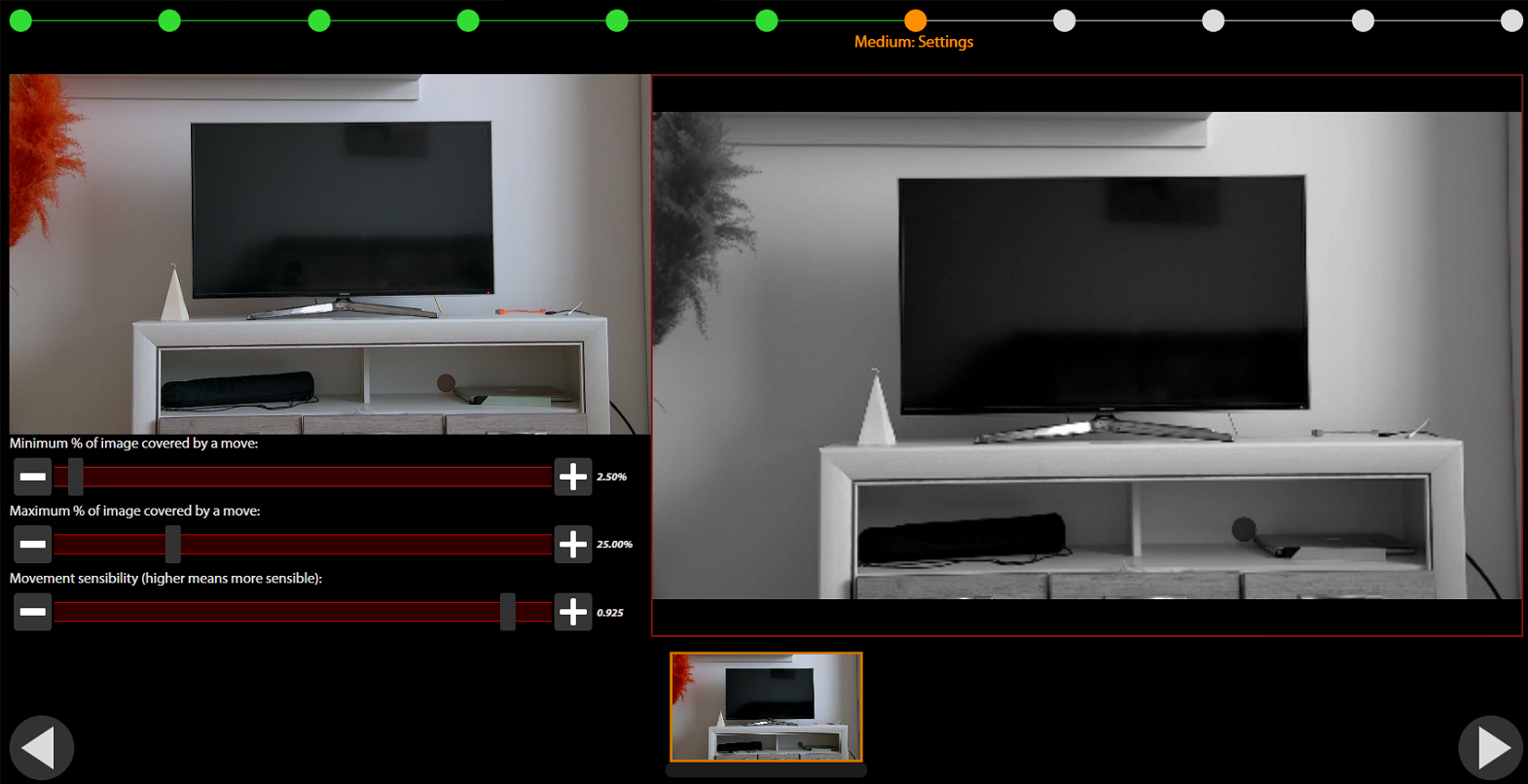

On this step you can adjust 3 parameters to get the best sharpness of the movement detection:

• Minimum % of image covered by a move - set minimum threshold of image covered by a move to allow detection.
• Maximum % of image covered by a move - set maximum threshold of image covered by a move to allow detection.
• Movement sensibility.

With the good settings you will see the frame around moving things / people.

You will have to do this for all medium presets.

When configuration will be done click on .

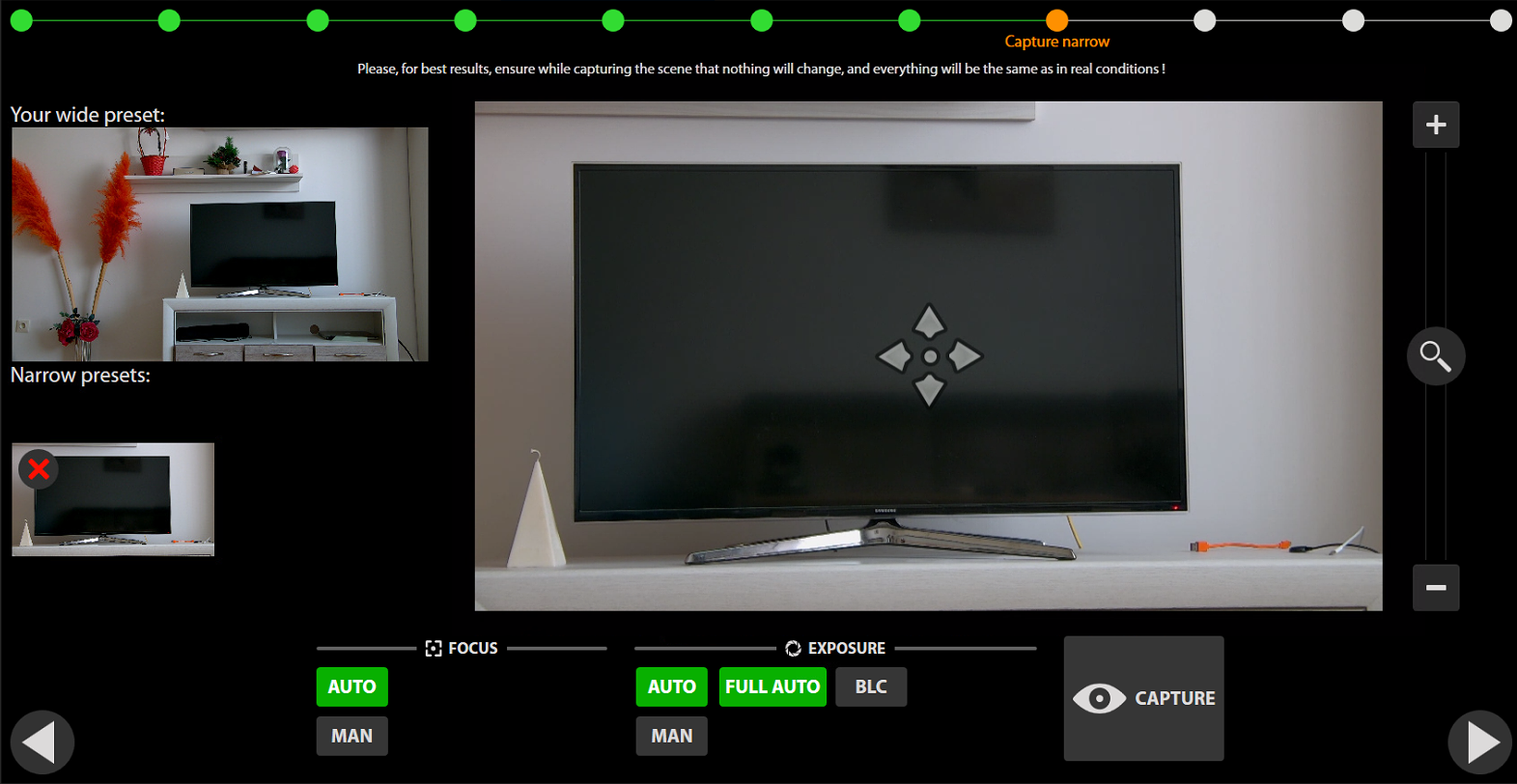

Capture Narrow

In this step you will have to capture the narrow presets for current camera. You can create several narrow presets. All of them you will see in the left area of the interface.

You can adjust PTZ, focus, and exposure for the each shot, and click the CAPTURE button.

With each click on the CAPTURE button system will create new narrow preset.

Then click on to go to the next step.

Narrow: Wide coverage

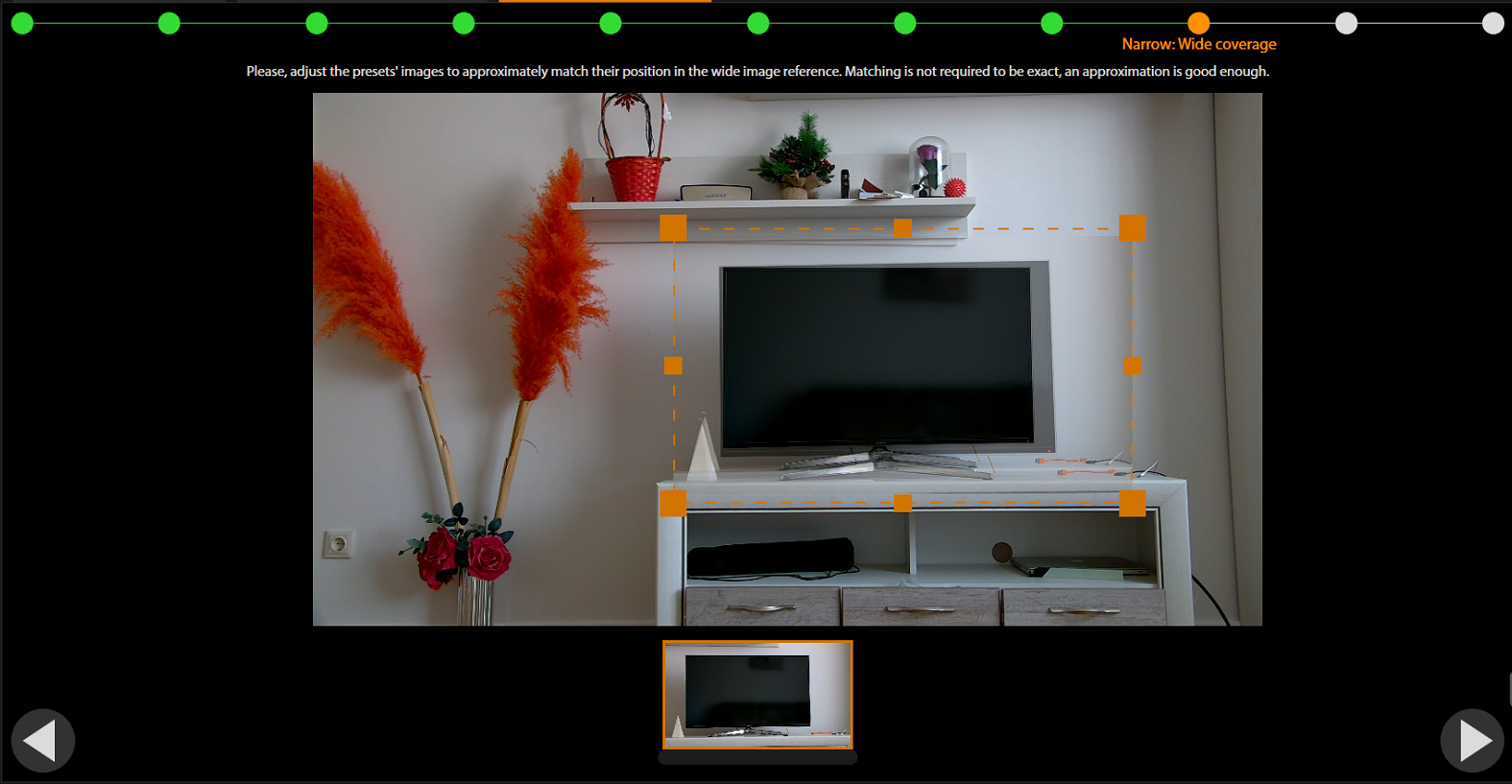

In this step you will have adjust the presets' images to approximately match their position in the wide image reference. Matching is not required to be exact - an approximation is good enough.

You will have to do this for all narrow presets.

When configuration is complete, click on .

Narrow: Region of interest

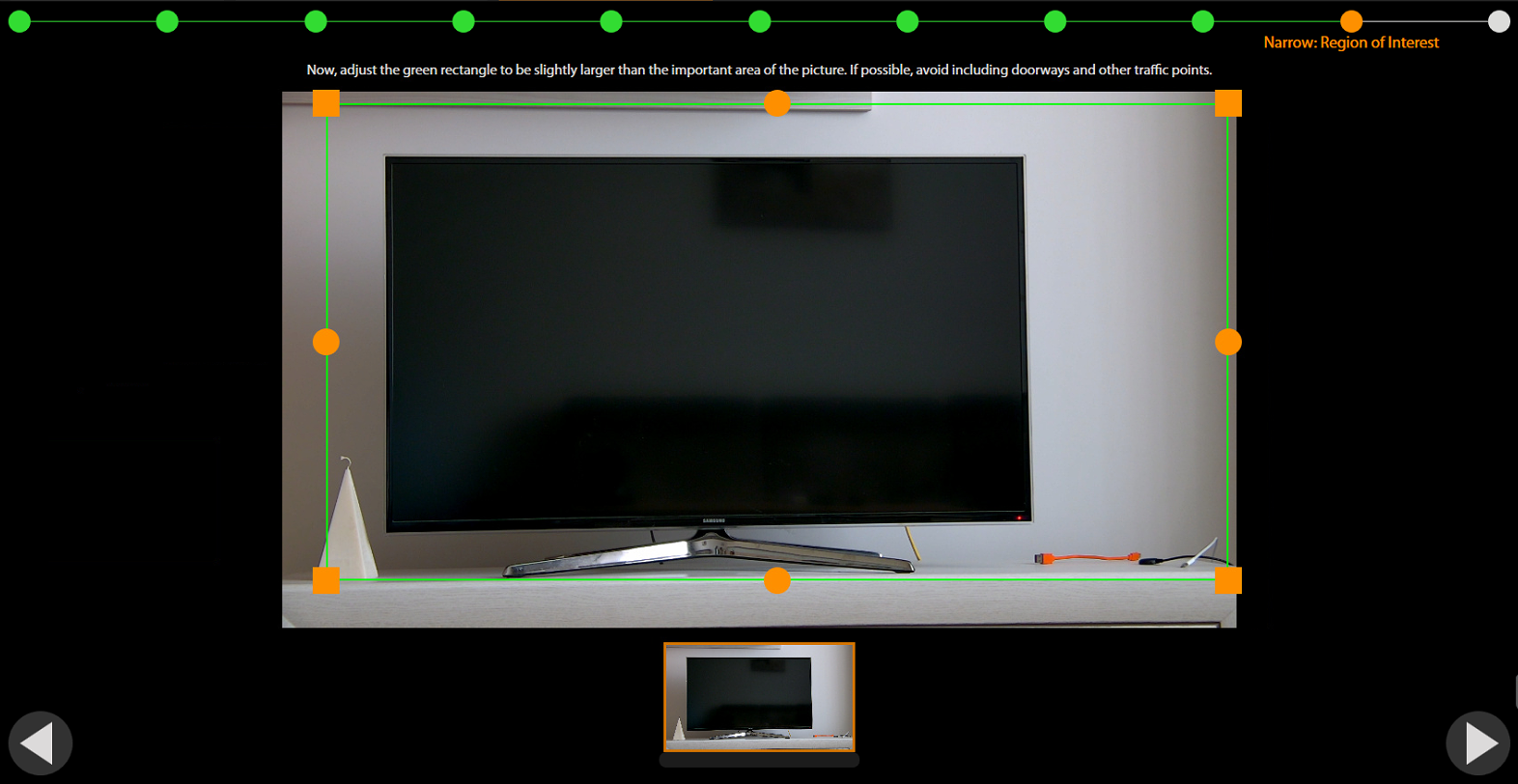

In this step you will need adjust green frame to be slightly larger than the important area of the picture. If possible, avoid including doorways and other traffic points.

When configuration is complete, click on .

Narrow: Settings

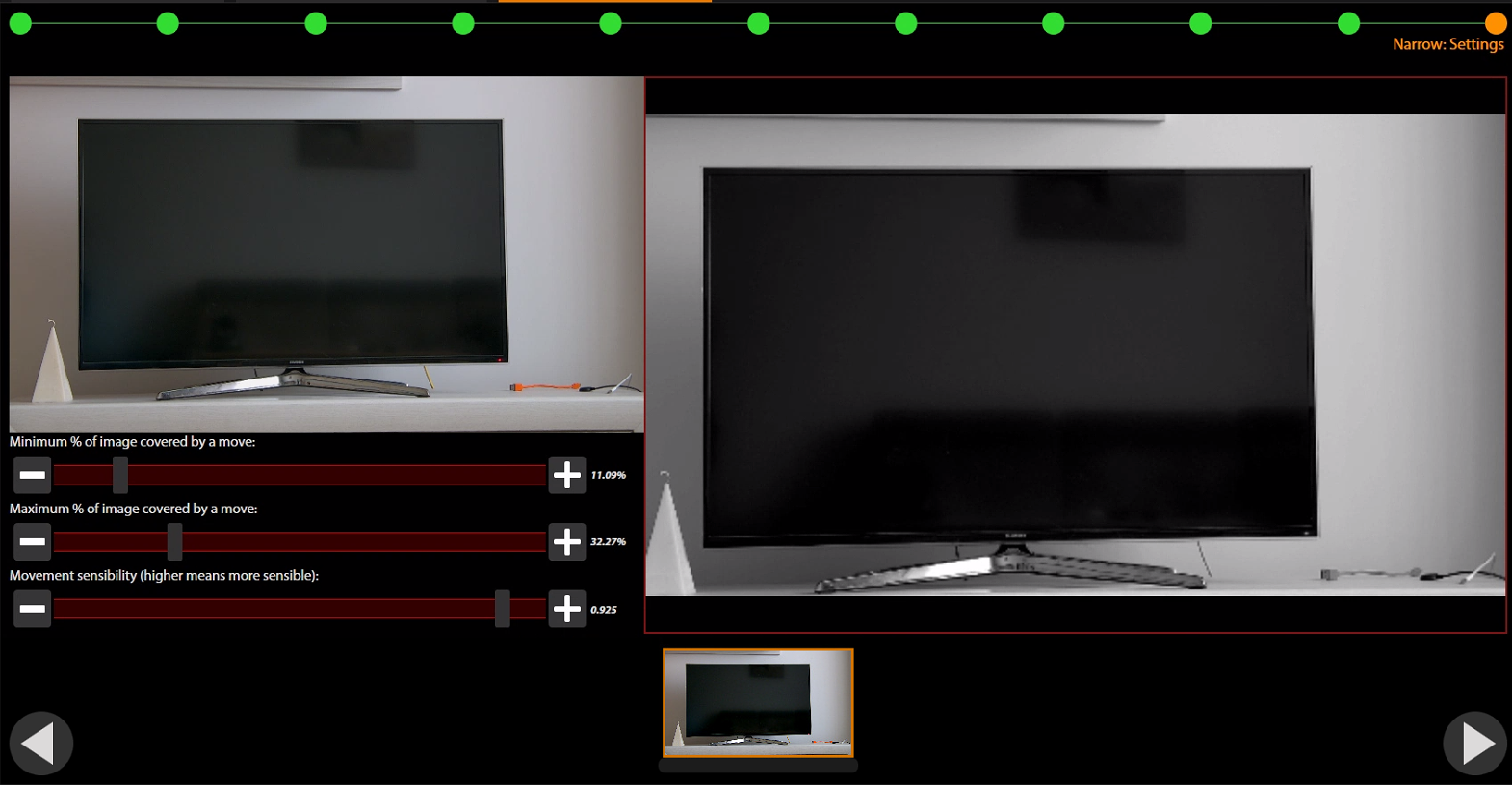

In this step you can adjust 3 parameters to get the best sharpness of the movement detection:

• Minimum % of image covered by a move - set minimum threshold of image covered by a move to allow detection.
• Maximum % of image covered by a move - set maximum threshold of image covered by a move to allow detection.
• Movement sensibility.

With the good settings you will see the frame around moving things / people.

You will have to do this for all medium presets.

When configuration is complete, click on .

Camera 2 configuration

Follow all previous steps for camera 2.
